- Part Number TJA1051T
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO
- Released Date Feb 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TJA1051T Details
-
Manufacturer Part Number:
TJA1051T
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOP-8
-
Pin Count:
8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
TJA1051T Frequently Asked Questions (FAQs)
-
The TJA1051T supports cable lengths up to 40 meters, but this can vary depending on the specific application and cable characteristics.
-
To ensure EMC, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and consider using common-mode chokes or filters to reduce emissions.
-
Follow a star-topology layout, keep sensitive signals away from noisy signals, and use a solid ground plane to minimize noise and radiation. Route high-speed signals on the top layer, and use a 50-ohm impedance-controlled trace for the CAN bus.
-
Use a logic analyzer or oscilloscope to monitor the CAN bus signals, check for proper termination, and verify that the bit rate and node configuration are correct. Also, ensure that the TJA1051T is properly configured and powered.
-
The TJA1051T has a junction temperature range of -40°C to 150°C. Ensure good thermal conduction by using a heat sink or thermal pad, and avoid overheating by keeping the device within the recommended operating temperature range.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TJA1051T Overview

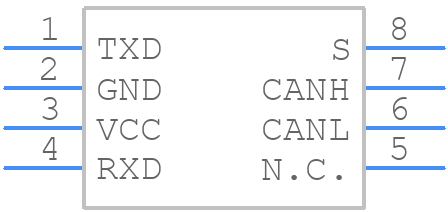

Use the download button to access the TJA1051T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA10,
or try a keyword search, such as Network Interfaces
