TJA1057CT/0Z - NXP

Description: CAN Interface IC High-speed CAN transceiver

Download TJA1057CT/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

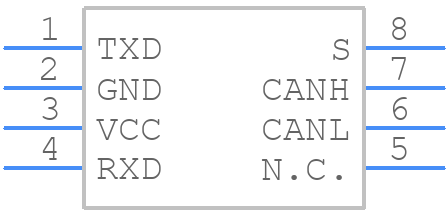

TJA1057CT/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1057CT/0Z - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT96-1
click to zoom
3D Models
TJA1057CT/0Z - NXP - 3D model - Small Outline Packages - SOT96-1
click to zoom

TJA1057CT/0Z Details

  • Manufacturer Part Number:

    TJA1057CT/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    12

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TJA1057CT/0Z Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TJA1057CT/0Z is dependent on the specific application and the type of cable used. However, as a general guideline, NXP recommends a maximum cable length of 40 meters for a 100 Mbps Fast Mode and 20 meters for a 1000 Mbps Gigabit Mode.
  • To ensure EMC with the TJA1057CT/0Z, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and ensure that the device is properly decoupled. Additionally, NXP provides an application note (AN10211) that provides guidelines for EMC design with the TJA1057CT/0Z.
  • The power consumption of the TJA1057CT/0Z depends on the operating mode and the supply voltage. In normal operation, the device typically consumes around 150 mA at 3.3 V. However, this can vary depending on the specific application and the device's configuration.
  • Yes, the TJA1057CT/0Z is AEC-Q100 qualified and can be used in automotive applications. However, it is essential to ensure that the device is used within its specified operating conditions and that the application meets the necessary safety and reliability requirements.
  • To troubleshoot issues with the TJA1057CT/0Z, start by checking the device's configuration and settings, ensuring that the device is properly powered and connected. Use diagnostic tools such as oscilloscopes and logic analyzers to analyze the device's signals and identify potential issues. NXP also provides a troubleshooting guide (AN10212) that provides additional guidance and tips.
