- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TJA1057GT/1Z
- Part Number TJA1057GT/1Z
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOT96-1
- Released Date Nov 30, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TJA1057GT/1Z Details
-
Manufacturer Part Number:
TJA1057GT/1Z
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
SOP-8
-
Country Of Origin:
Mainland China, Thailand
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
4 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
3
-
Data Rate:
5000 Mbps
-
JESD-30 Code:
R-PDSO-G8
TJA1057GT/1Z Frequently Asked Questions (FAQs)
-
The maximum cable length supported by the TJA1057GT/1Z is 40 meters, assuming a cable with a characteristic impedance of 100 ohms and a propagation delay of 5 ns/m.
-
The TJA1057GT/1Z has a built-in common-mode filter that helps to reject common-mode noise and voltage. It can handle common-mode voltages up to ±25V.
-
The power consumption of the TJA1057GT/1Z is typically around 70mA at 3.3V supply voltage, but this can vary depending on the specific application and operating conditions.
-
Yes, the TJA1057GT/1Z is compatible with other CAN transceivers that comply with the ISO 11898-2 standard. However, compatibility with specific transceivers should be verified through testing and validation.
-
The TJA1057GT/1Z has built-in fault-tolerant features, including overtemperature protection, undervoltage protection, and bus fault detection. It also has a fail-safe mode that ensures the bus is not driven in case of a fault.
Trust Checks
Community Provided
System Verified
Community Approved
TJA1057GT/1Z Overview

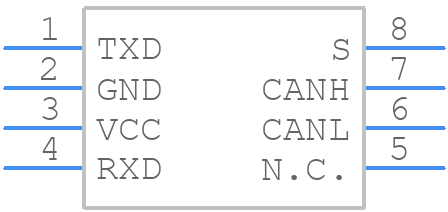

Use the download button to access the TJA1057GT/1Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA10,
or try a keyword search, such as Network Interfaces
