- Part Number TJA1057GT/3
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOT96-1
- Released Date Mar 5, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TJA1057GT/3 Details
-
Manufacturer Part Number:
TJA1057GT/3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOP-8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
6.92
-
Data Rate:
5000 Mbps
-
JESD-30 Code:
R-PDSO-G8
-
Length:
4.9 mm
TJA1057GT/3 Frequently Asked Questions (FAQs)
-
The TJA1057GT/3 supports cable lengths up to 40 meters, but this can vary depending on the specific application and cable characteristics.
-
To ensure EMC, follow proper PCB layout and design guidelines, use shielding and grounding techniques, and consider using additional filtering components if necessary.
-
The recommended operating temperature range for the TJA1057GT/3 is -40°C to 125°C, but it can operate up to 150°C for short periods of time.
-
Yes, the TJA1057GT/3 can be used in redundant or fault-tolerant systems, but additional circuitry and design considerations are required to ensure proper operation.
-
Use a logic analyzer or oscilloscope to monitor the bus signals, check for proper power supply and grounding, and consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TJA1057GT/3 Overview

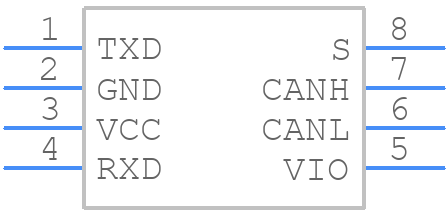

Use the download button to access the TJA1057GT/3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA10,
or try a keyword search, such as Network Interfaces
