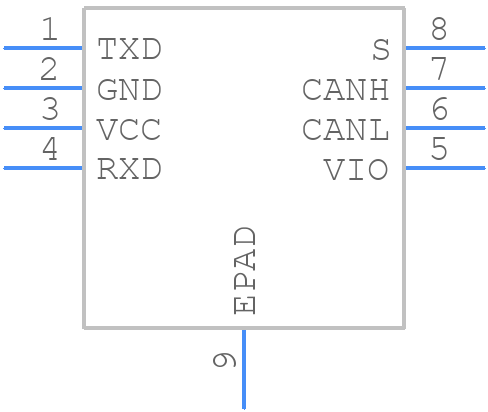

TJA1057GTK/3Z - NXP

TJA1057GTK/3Z Details

• Manufacturer Part Number:

  TJA1057GTK/3Z

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  SON

• Package Description:

  HVSON-8

• Pin Count:

  8

• Manufacturer Package Code:

  SOT782-1

• Country Of Origin:

  Thailand

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  3

• Data Rate:

  5000 Mbps

• JESD-30 Code:

  S-PDSO-N8

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of Transceivers:

  1

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.12,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  70 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Telecom IC Type:

  CAN FD TRANSCEIVER

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
