TJA1082TT,112 - NXP

Description: Interface - Specialized IC TXRX FLEXRAY

Download TJA1082TT,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

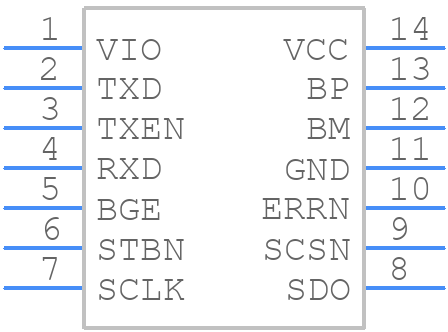

TJA1082TT,112 - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1082TT,112 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14
click to zoom
3D Models
TJA1082TT,112 - NXP - 3D model - Small Outline Packages - TSSOP14
click to zoom

TJA1082TT,112 Details

  • Manufacturer Part Number:

    TJA1082TT,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    4.40 MM, PLASTIC, MO-153, SOT402-1, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT402-1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    33 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Data Rate:

    10000 Mbps

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    FLEXRAY TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TJA1082TT,112 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TJA1082TT,112 involves keeping the CAN bus traces as short as possible, using a solid ground plane, and placing the device close to the CAN bus connector. Additionally, it's recommended to use a common-mode choke and a TVS diode for ESD protection.
  • To ensure reliable communication in noisy environments, use a shielded CAN bus cable, implement proper grounding and shielding, and consider using a common-mode filter or a noise filter capacitor. Additionally, ensure that the TJA1082TT,112 is properly configured for the specific CAN bus application.
  • The maximum cable length supported by the TJA1082TT,112 depends on the specific CAN bus application and the cable characteristics. However, as a general guideline, the maximum cable length should not exceed 40 meters for a 500 kbps CAN bus and 10 meters for a 1 Mbps CAN bus.
  • To troubleshoot CAN bus communication issues with the TJA1082TT,112, use a CAN bus analyzer or a logic analyzer to monitor the CAN bus signals. Check for errors, such as bus-off conditions, and verify that the TJA1082TT,112 is properly configured and powered. Also, ensure that the CAN bus termination resistors are correctly placed and sized.
  • The TJA1082TT,112 is a CAN transceiver that complies with the ISO 11898-2 standard, making it compatible with other CAN transceiver devices that also comply with this standard. However, it's essential to verify the specific device compatibility and configuration requirements for the target application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1082TT,112 Overview

Use the download button to access the TJA1082TT,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA10, or try a keyword search, such as Network Interfaces
