Part Image

TJA1082TT,118 - NXP

Description: Interface - Specialized IC TXRX FLEXRAY

Download TJA1082TT,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

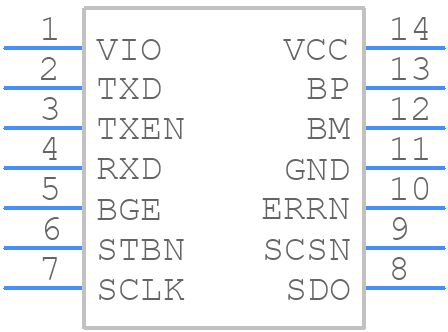

TJA1082TT,118 - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1082TT,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14
click to zoom
3D Models
TJA1082TT,118 - NXP - 3D model - Small Outline Packages - TSSOP14
click to zoom

TJA1082TT,118 Details

  • Manufacturer Part Number:

    TJA1082TT,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    4.40 MM, PLASTIC, MO-153, SOT402-1, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT402-1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Data Rate:

    10000 Mbps

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    FLEXRAY TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TJA1082TT,118 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TJA1082TT,118 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the CAN bus lines. It's also recommended to use a common mode choke and a TVS diode for ESD protection.
  • To ensure EMC with the TJA1082TT,118, follow proper PCB design guidelines, use a shielded cable for the CAN bus, and consider adding a common mode filter or a ferrite bead to the CAN bus lines. Additionally, ensure that the device is properly grounded and that the system meets the relevant EMC standards.
  • The maximum cable length supported by the TJA1082TT,118 depends on the specific application and the bit rate used. As a general guideline, the maximum cable length for a 500 kbps CAN bus is around 40 meters, while for a 1 Mbps CAN bus, it's around 10 meters.
  • To troubleshoot issues with the TJA1082TT,118, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the CAN bus termination and the signal integrity. Use a logic analyzer or an oscilloscope to monitor the CAN bus signals and identify any errors or anomalies.
  • The TJA1082TT,118 is a CAN transceiver that conforms to the ISO 11898-2 standard, making it compatible with other CAN transceivers that adhere to the same standard. However, it's essential to verify the specific requirements of the target application and ensure that the transceivers are configured correctly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1082TT,118 Overview

Use the download button to access the TJA1082TT,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA10, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
