TJA1083GTT/0Z - NXP

Description: Interface - Specialized FlexRay node transceiver (Clamp 15)

Download TJA1083GTT/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

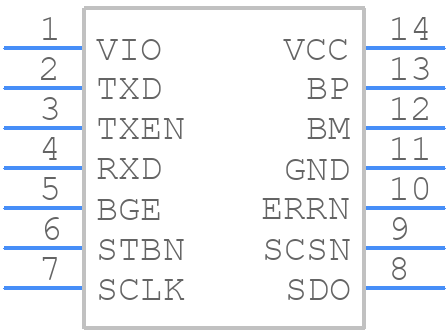

TJA1083GTT/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1083GTT/0Z - NXP PCB footprint - Small Outline Packages - Small Outline Packages - P89LPC912FDH,129
click to zoom
3D Models
TJA1083GTT/0Z - NXP - 3D model - Small Outline Packages - P89LPC912FDH,129
click to zoom

TJA1083GTT/0Z Details

  • Manufacturer Part Number:

    TJA1083GTT/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    14

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    22 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    FLEXRAY TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TJA1083GTT/0Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the TJA1083GTT/0Z involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the CAN bus connector. Additionally, the device's power supply pins should be decoupled with capacitors and resistors to minimize noise and oscillations.
  • To troubleshoot issues with the TJA1083GTT/0Z, start by checking the device's power supply and clock signals. Verify that the CAN bus is properly terminated and that the bit rate is set correctly. Use a logic analyzer or oscilloscope to monitor the CAN bus signals and check for errors or bus faults. Also, ensure that the device is properly configured and initialized.
  • The TJA1083GTT/0Z has a maximum junction temperature of 150°C. To ensure reliable operation in high-temperature environments, ensure good heat dissipation by using a heat sink or thermal pad, and avoid overheating the device. Also, reduce the power consumption by minimizing the current drawn from the device.
  • Yes, the TJA1083GTT/0Z is designed to meet the requirements of automotive safety standards such as ISO 26262. However, it is essential to follow the safety guidelines and recommendations provided by NXP Semiconductors and to perform thorough testing and validation to ensure compliance with the relevant safety standards.
  • To ensure EMC when using the TJA1083GTT/0Z, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering techniques. Also, ensure that the device is properly decoupled and that the CAN bus is properly terminated.
