TJA1085GHN/0Z - NXP

Description: Compliant with FlexRay Electrical Physical Layer specification V3.0.1/ISO17458-4  Automotive product qualification in accordance with AEC-Q100  Data transfer rates from 2.5 Mbit/s to 10 Mbit/s  Supports 60 ns minimum bit time at 400 mV differential voltage  Low-power management for battery-supplied ECUs  Very low current consumption in AS_Sleep mode  Leadless HVQFN44 package with improved Automated Optical Inspection (AOI) capability

Download TJA1085GHN/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

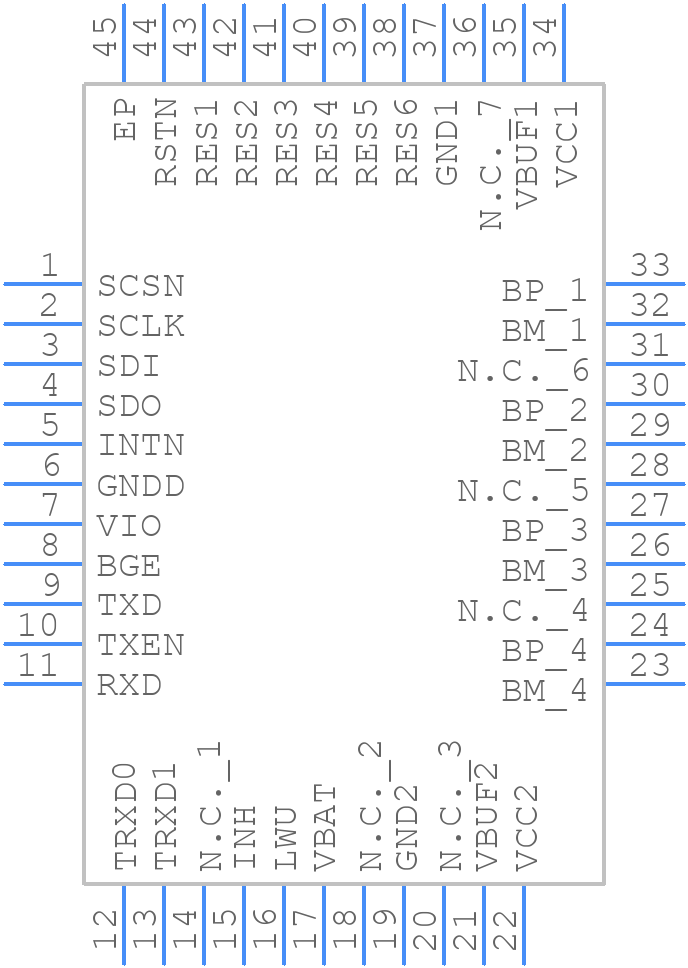

TJA1085GHN/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1085GHN/0Z - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - sot-1113-1
click to zoom
3D Models
TJA1085GHN/0Z - NXP - 3D model - Quad Flat No-Lead - sot-1113-1
click to zoom

TJA1085GHN/0Z Details

  • Manufacturer Part Number:

    TJA1085GHN/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    14

  • JESD-30 Code:

    S-PQCC-N44

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC44,.35SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    185 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    FLEXRAY TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

TJA1085GHN/0Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the TJA1085GHN/0Z involves keeping the CAN bus lines as short as possible, using a ground plane, and placing the transceiver close to the CAN bus connector. Additionally, it's recommended to use a common-mode choke and a shielded cable to reduce EMI.
  • To ensure proper power and decoupling, connect the VCC pin to a stable 5V power supply, and decouple the VCC pin with a 100nF capacitor to GND. Additionally, place a 10uF capacitor between VCC and GND for further decoupling.
  • The maximum cable length supported by the TJA1085GHN/0Z is 40 meters, assuming a transmission rate of 1 Mbps and a bus load of 30 nodes.
  • To troubleshoot CAN bus communication issues, use a CAN bus analyzer to monitor the bus traffic, check the termination resistors, and verify the correct configuration of the TJA1085GHN/0Z. Also, ensure that the CAN bus lines are properly connected and not damaged.
  • Yes, the TJA1085GHN/0Z is compatible with other CAN transceivers that comply with the ISO 11898-2 standard. However, it's recommended to verify the compatibility of specific transceivers with the TJA1085GHN/0Z in your application.
