TJA1086GHN/0Z - NXP

Description: Interface - Specialized FLEXRAY TRANSCEIVERS

Download TJA1086GHN/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

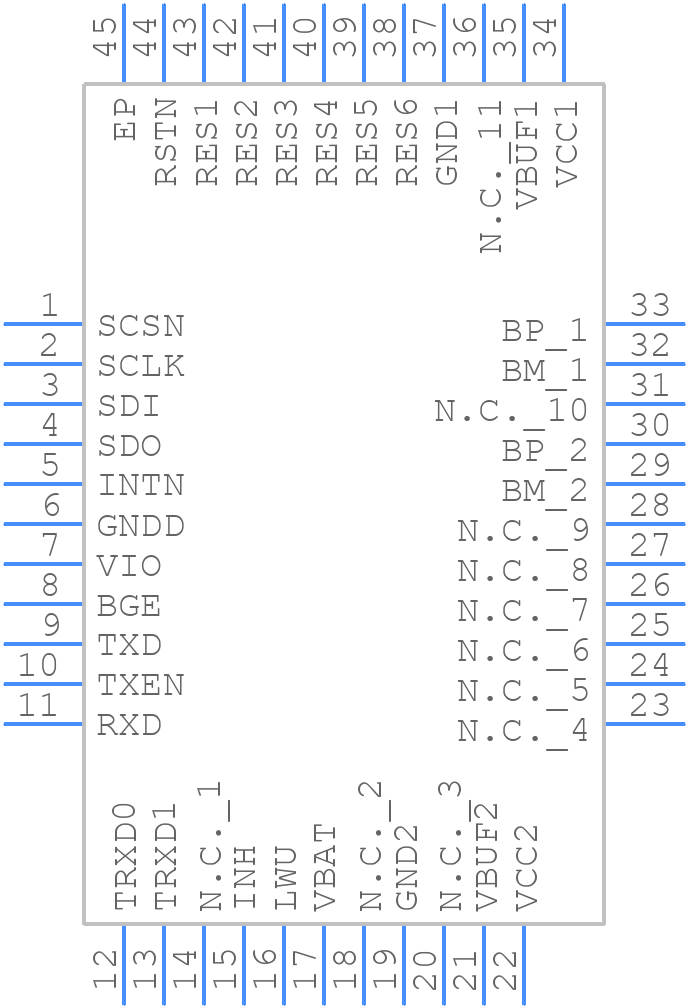

Symbol
TJA1086GHN/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1086GHN/0Z - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - qfen-45
click to zoom
3D Models
TJA1086GHN/0Z - NXP - 3D model - Quad Flat No-Lead - qfen-45
click to zoom

TJA1086GHN/0Z Details

  • Manufacturer Part Number:

    TJA1086GHN/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FLEXRAY ACTIVE STAR COUPLER

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    14

  • Data Rate:

    10000 Mbps

  • JESD-30 Code:

    S-PQCC-N44

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC44,.35SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    120 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    FLEXRAY TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

TJA1086GHN/0Z Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11561, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TJA1086GHN/0Z is a high-speed CAN transceiver that supports multiple bus speeds. To configure it for different bus speeds, you need to adjust the slope control pin (SC) and the output driver strength. Refer to the datasheet and application notes for specific guidance on configuring the device for your desired bus speed.
  • The maximum cable length supported by the TJA1086GHN/0Z depends on the bus speed and the cable characteristics. As a general guideline, NXP recommends a maximum cable length of 40 meters for a 1 Mbps bus speed and 10 meters for a 500 kbps bus speed. However, the actual cable length may vary depending on the specific application and environment.
  • To ensure EMC with the TJA1086GHN/0Z, follow the guidelines in the datasheet and application notes for proper PCB layout, component selection, and shielding. Additionally, consider implementing EMC filters and common-mode chokes to reduce electromagnetic interference (EMI) and improve immunity to electromagnetic disturbances.
  • The TJA1086GHN/0Z is a high-power device that requires proper thermal management to ensure reliability and performance. Follow the guidelines in the datasheet and application notes for thermal pad connection, heat sink design, and PCB thermal management to keep the device within its recommended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1086GHN/0Z Overview

Use the download button to access the TJA1086GHN/0Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA10, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
