- Stock & Prices $ Price & Stock for TJA1086HNJ
- Part Number TJA1086HNJ
- Manufacturer NXP
- Pin Count 45
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - qfen-45
- Released Date Mar 5, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TJA1086HNJ Details
-
Manufacturer Part Number:
TJA1086HNJ
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Part Package Code:
QFN
-
Package Description:
FLEXRAY ACTIVE STAR COUPLER
-
Pin Count:
44
-
Manufacturer Package Code:
SOT1113-1
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
10 Weeks
-
Manufacturer:
NXP Semiconductors
TJA1086HNJ Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout in the application note AN11524, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The TJA1086HNJ is a flexible transceiver that can be configured for various CAN bus topologies, including star, bus, and tree topologies. Refer to the application note AN11524 for configuration guidelines and examples.
-
The maximum cable length supported by the TJA1086HNJ depends on the specific CAN bus application and the cable characteristics. As a general guideline, NXP recommends a maximum cable length of 40 meters for a 500 kbps CAN bus system. However, longer cable lengths may be possible with proper system design and cable selection.
-
NXP provides a troubleshooting guide in the application note AN11524, which covers common issues and their possible causes, as well as debugging techniques and tools to help identify and resolve problems.
-
The TJA1086HNJ is a standard CAN transceiver that complies with the ISO 11898-2 standard. It is compatible with most CAN controllers and transceivers that adhere to the same standard. However, it's always recommended to verify compatibility with specific components and systems.
Trust Checks
Community Provided
System Verified
Community Approved
TJA1086HNJ Overview

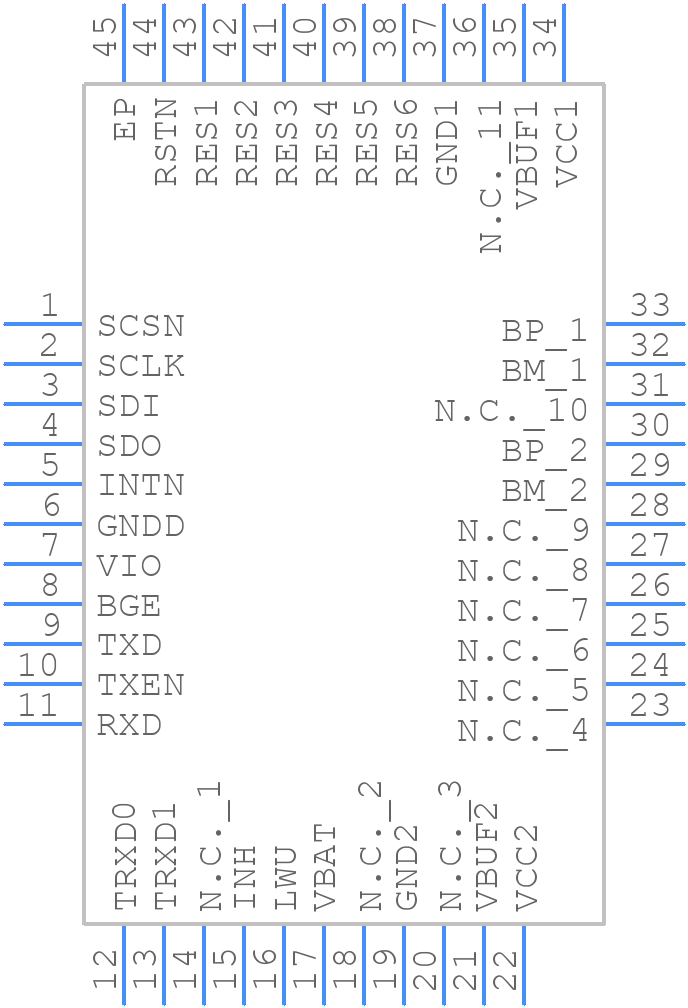

Use the download button to access the TJA1086HNJ schematic symbol, PCB footprint, and 3D model.
