- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TJA1128DTK/0Z
- Part Number TJA1128DTK/0Z
- Manufacturer NXP
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - SOT1086-2
- Released Date Aug 15, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TJA1128DTK/0Z Details
-
Manufacturer Part Number:
TJA1128DTK/0Z
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
HVSON-14
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
7
-
Adjustable Threshold:
NO
-
Analog IC - Other Type:
SYSTEM BASIS CHIP
TJA1128DTK/0Z Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signals separate, and use a common mode filter to reduce EMI.
-
Use the NXP configuration tool or a third-party tool like CANalyzer to configure the device. Set the bit rate, sample point, and other parameters according to the specific CAN bus application requirements.
-
The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the TJA1128DTK/0Z supports cable lengths up to 40 meters at 500 kbps and 10 meters at 1 Mbps.
-
Use a CAN bus analyzer tool to monitor the bus traffic and identify errors. Check the device configuration, cable connections, and termination resistors. Also, verify that the device is properly powered and the supply voltage is within the recommended range.
-
Yes, the TJA1128DTK/0Z is compatible with other CAN transceivers that conform to the ISO 11898-2 standard. However, compatibility may vary depending on the specific application and device configuration.
Trust Checks
Community Provided
System Verified
Community Approved
TJA1128DTK/0Z Overview

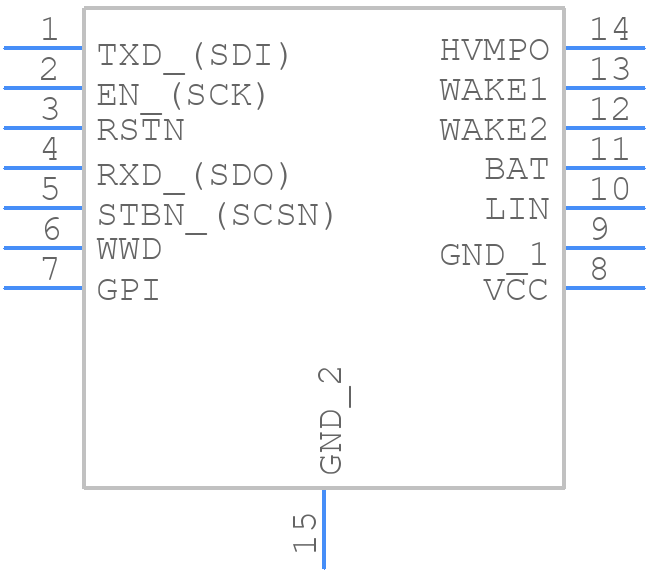

Use the download button to access the TJA1128DTK/0Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA11,
or try a keyword search, such as Power Management Circuits
