TJA1145TKJ - NXP

Description: CAN 2Mbps Normal/Sleep/Standby/Off/Overtemp 5V Automotive 14-Pin HVSON EP T/R

Download TJA1145TKJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

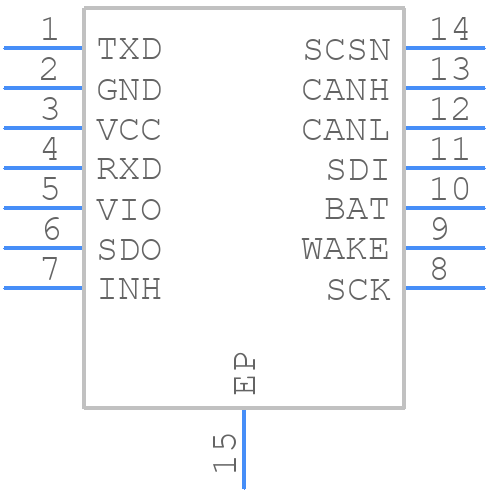

Symbol
TJA1145TKJ - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1145TKJ - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - HVSON14
click to zoom
3D Models
TJA1145TKJ - NXP - 3D model - Small Outline No-lead - HVSON14
click to zoom

TJA1145TKJ Details

  • Manufacturer Part Number:

    TJA1145TKJ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    HVSON-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT1086-2

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC14,.12,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.5 mA

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TJA1145TKJ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode filter and a shielded cable for the CAN bus.
  • Use a shielded enclosure, keep the CAN bus cables away from noise sources, and use a common mode filter. Ensure the PCB layout is optimized for EMC, and use a ferrite bead or a common mode choke on the CAN bus lines.
  • The maximum cable length depends on the bit rate and the cable characteristics. As a general guideline, a maximum cable length of 40 meters is recommended for a 500 kbps CAN bus.
  • Use a CAN bus analyzer to monitor the bus traffic and identify errors. Check the termination resistors, cable connections, and the PCB layout. Verify the bit rate and the CAN bus configuration.
  • Yes, the TJA1145TKJ is designed for fault-tolerant CAN bus systems. It has a built-in fault-tolerant mode that allows the transceiver to continue operating even if one of the bus lines is short-circuited to ground or VCC.
