TJA1448CTK/0Z - NXP

Description: CAN Interface IC Dual High-speed CAN transceiver with Standby mode and wake-up source recognition

Download TJA1448CTK/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

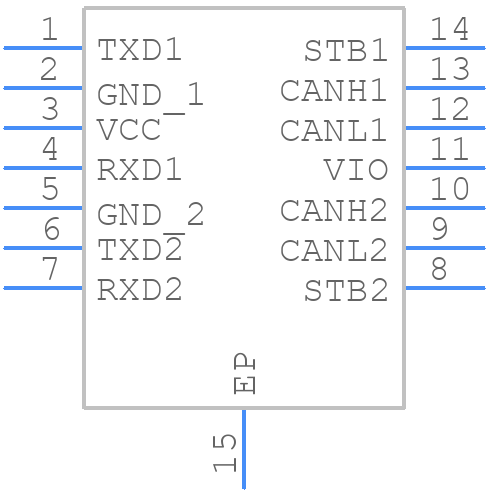

Symbol
TJA1448CTK/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1448CTK/0Z - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - HVSON14
click to zoom
3D Models
TJA1448CTK/0Z - NXP - 3D model - Small Outline No-lead - HVSON14
click to zoom

TJA1448CTK/0Z Details

  • Manufacturer Part Number:

    TJA1448CTK/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON-14

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-N14

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Transceivers:

    2

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

TJA1448CTK/0Z Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11524, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TJA1448CTK/0Z is a high-speed CAN transceiver that supports data rates up to 1 Mbps. To configure it for different CAN bus speeds, you need to adjust the slope control pin (SC) and the bus timing according to the specific CAN bus standard being used. Refer to the NXP application note AN11524 for more information.
  • The maximum cable length supported by the TJA1448CTK/0Z depends on the specific CAN bus application and the cable characteristics. As a general guideline, NXP recommends a maximum cable length of 40 meters for a 1 Mbps CAN bus. However, this can be extended up to 100 meters or more with the use of repeaters or other signal conditioning devices.
  • To protect the TJA1448CTK/0Z from ESD, NXP recommends following proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats. Additionally, the device has built-in ESD protection, but it's still important to follow good design practices, such as using ESD protection diodes and resistors in the circuit.
  • The TJA1448CTK/0Z has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of automotive and industrial applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1448CTK/0Z Overview

Use the download button to access the TJA1448CTK/0Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA14, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
