TJA1462BT/0Z - NXP

Description: CAN Interface IC CAN SIC transceiver with Standby mode

Download TJA1462BT/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

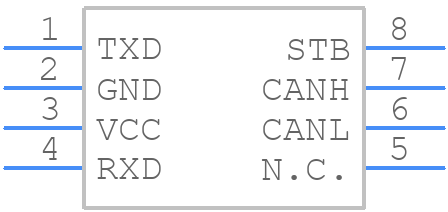

TJA1462BT/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1462BT/0Z - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO8: plastic small outline package; 8 leads; body width 3.9 mm
click to zoom
3D Models
TJA1462BT/0Z - NXP - 3D model - Small Outline Packages - SO8: plastic small outline package; 8 leads; body width 3.9 mm
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for TJA1462BT/0Z
  • Part Number TJA1462BT/0Z
  • Manufacturer NXP
  • Pin Count 8
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - SO8: plastic small outline package; 8 leads; body width 3.9 mm
  • Released Date Feb 13, 2022
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

TJA1462BT/0Z Details

  • Manufacturer Part Number:

    TJA1462BT/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Data Rate:

    8000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    125 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD SIC TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

TJA1462BT/0Z Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11559, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TJA1462BT/0Z can be configured for different bus speeds and node counts using the NXP's LIN configuration tool, which provides a graphical user interface to set up the device's registers and configure the LIN bus. The tool is available on the NXP website.
  • The maximum cable length supported by the TJA1462BT/0Z depends on the specific application and the characteristics of the cable. However, as a general guideline, NXP recommends a maximum cable length of 40 meters for a LIN bus operating at 19.2 kbps. Longer cable lengths may be possible with proper cable selection and termination.
  • The TJA1462BT/0Z has built-in fault detection and error handling mechanisms, including bus short-circuit detection, overtemperature detection, and error counters. The device can also be configured to generate interrupts or reset signals in response to faults and errors, allowing the system to take corrective action.
  • The TJA1462BT/0Z is a standard LIN transceiver that complies with the LIN 2.1 and SAE J2602 specifications. As such, it is compatible with other LIN transceivers and microcontrollers that also comply with these standards. However, it's always recommended to verify compatibility and perform thorough testing before integrating the TJA1462BT/0Z into a specific system.
