TJA1463ATK/0Z - NXP

Description: NXP - TJA1463ATK/0Z - CAN Bus, CAN, 4.5 V, 5.5 V, HVSON

Download TJA1463ATK/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

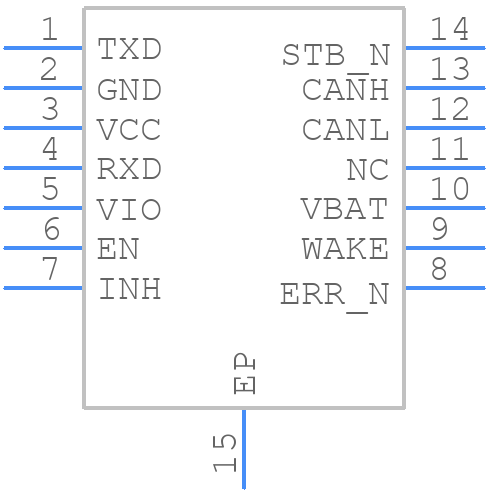

TJA1463ATK/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1463ATK/0Z - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - HVSON14
click to zoom
3D Models
TJA1463ATK/0Z - NXP - 3D model - Small Outline No-lead - HVSON14
click to zoom

TJA1463ATK/0Z Details

  • Manufacturer Part Number:

    TJA1463ATK/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON-14

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Data Rate:

    8000 Mbps

  • JESD-30 Code:

    R-PDSO-N14

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD SIC TRANSCEIVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.5 mm

TJA1463ATK/0Z Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11535, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TJA1463ATK/0Z can be configured for different CAN bus speeds by adjusting the bit timing registers (BTR) and the clock frequency. NXP provides a CAN bit timing calculator tool to help with this configuration.
  • The maximum cable length supported by the TJA1463ATK/0Z depends on the specific application and the type of cable used. As a general guideline, NXP recommends a maximum cable length of 40 meters for a 500 kbps CAN bus and 10 meters for a 1 Mbps CAN bus.
  • To ensure EMC with the TJA1463ATK/0Z, follow the guidelines in the NXP application note AN11535, which includes recommendations for PCB layout, component selection, and shielding. Additionally, ensure that the device is properly decoupled and that the CAN bus is properly terminated.
  • The power consumption of the TJA1463ATK/0Z in sleep mode is typically around 10 μA. However, this can vary depending on the specific application and the mode of operation. Refer to the datasheet for more information on power consumption in different modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1463ATK/0Z Overview

Use the download button to access the TJA1463ATK/0Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA14, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
