TJA1465ATK/0J - NXP

Description: CAN SIC transceiver with partial networking [ASILB]Package:plastic, thermal enhanced very thin small outline package; no leads; 14 terminals, 0.65 mm pitch, 4.5 mm x 3 mm x 0.85 mm bodyProduct:NXP TJA1465 - CAN SIC Transceiver with Partial Networking, CAN FD Data rates up to 8 Mbit/s

Download TJA1465ATK/0J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

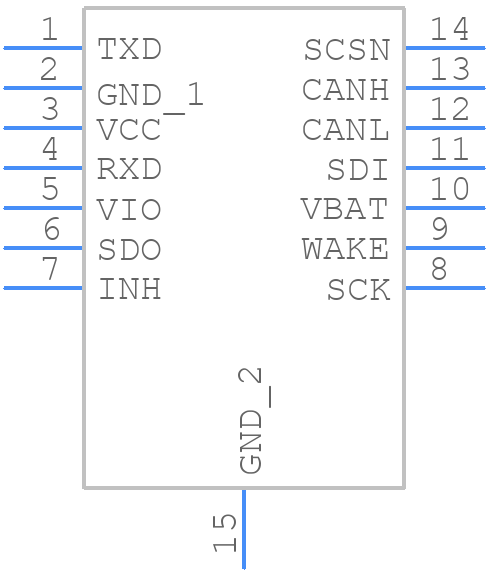

TJA1465ATK/0J - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1465ATK/0J - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - HVSON14_2024
click to zoom
3D Models
TJA1465ATK/0J - NXP - 3D model - Small Outline No-lead - HVSON14_2024
click to zoom

TJA1465ATK/0J Details

  • Manufacturer Part Number:

    TJA1465ATK/0J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    14

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1465ATK/0J Overview

Use the download button to access the TJA1465ATK/0J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA14, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
