Part Image

TJA1465ATK - NXP

Description: SO 11898-2:2024 parameter sets A-C, SAE J2284-1 to SAE J2284-5 and SAE J1939-14 compliant • ISO 26262, ASIL B compliant • Partial networking capability through selective wake-up functionality • Configurable general-purpose I/O (GPIO) pins (TJA1465B) • Second RXD and/or TXD pins (RXD2/TXD2), configurable via GPIO (TJA1465B) • Direct transmitter on/off control input (TXEN_N) (TJA1465B) • CAN signal improvement capability as defined in ISO 11898-2:2024 parameter set C to significantly reduce signal ring

Download TJA1465ATK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

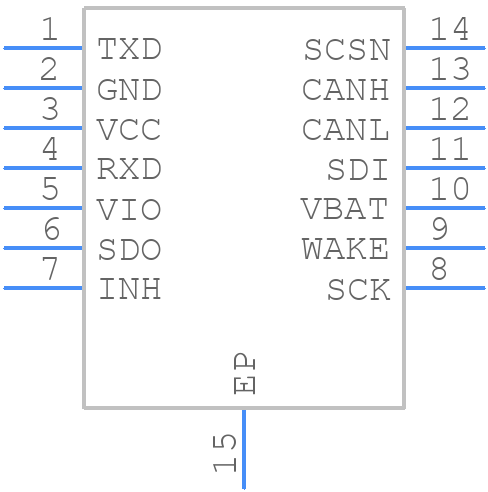

TJA1465ATK - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1465ATK - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - HVSON14
click to zoom
3D Models
TJA1465ATK - NXP - 3D model - Small Outline No-lead - HVSON14
click to zoom

TJA1465ATK Details

  • Manufacturer Part Number:

    TJA1465ATK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    NXP Semiconductors

  • Telecom IC Type:

    CAN FD SIC TRANSCEIVER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1465ATK Overview

Use the download button to access the TJA1465ATK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA14, or try a keyword search, such as Network Interfaces
