TJA1465BHG/0J - NXP

Description: CAN SIC transceiver with partial networking and GPIO pins [ASIL B]Package:DHVQFN18: DIL-compatible thermal enhanced very thin quad flatpack; no leads;18 terminals; body 3.0 x 4.5 x 0.85 mmProduct:NXP TJA1465 - CAN SIC Transceiver with Partial Networking, CAN FD Data rates up to 8 Mbit/s

Download TJA1465BHG/0J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

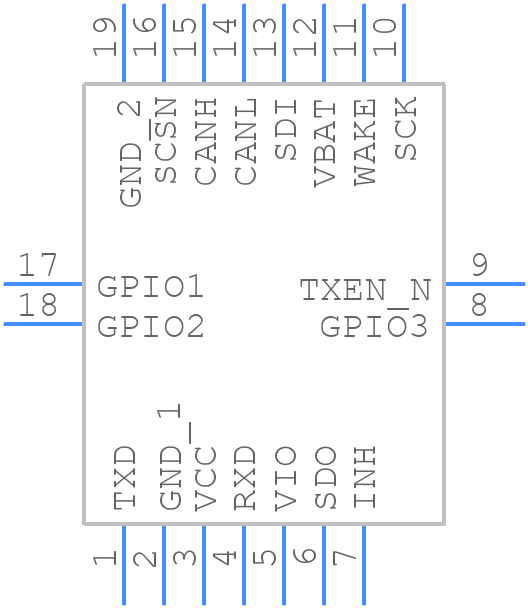

TJA1465BHG/0J - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1465BHG/0J - NXP PCB footprint - Other - Other - SOT2163-1_Master
click to zoom
3D Models
TJA1465BHG/0J - NXP - 3D model - Other - SOT2163-1_Master
click to zoom

TJA1465BHG/0J Details

  • Manufacturer Part Number:

    TJA1465BHG/0J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    14

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1465BHG/0J Overview

Use the download button to access the TJA1465BHG/0J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA14, or try a keyword search, such as Network Interfaces
