TJA1466BHG/0J - NXP

Description: CAN SIC transceiver with partial networking, watchdog, RESET pin, FAIL-SAFE/LIMP pin and GPIO pins [ASIL B, 1.8 V VIO]Package:DHVQFN18: DIL-compatible thermal enhanced very thin quad flatpack; no leads;18 terminals; body 3.0 x 4.5 x 0.85 mmProduct:NXP TJA1466 - CAN SIC Transceiver with Partial Networking and Advanced System Monitoring, CAN FD Data rates up to 8 Mbit/s

Download TJA1466BHG/0J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

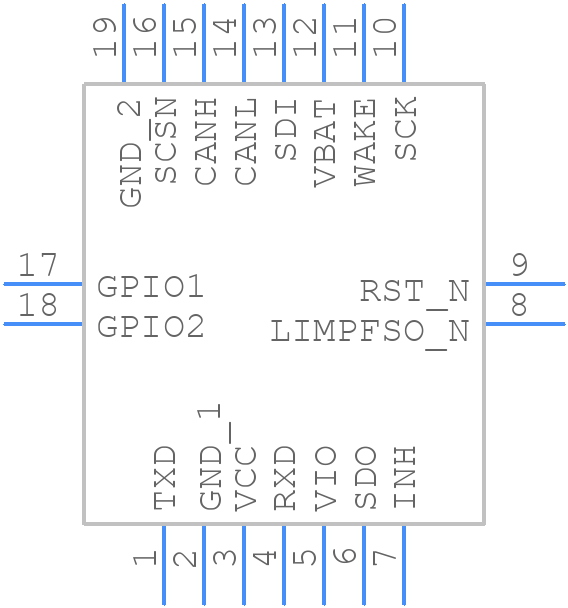

TJA1466BHG/0J - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1466BHG/0J - NXP PCB footprint - Other - Other - SOT2163-1_Master
click to zoom
3D Models
TJA1466BHG/0J - NXP - 3D model - Other - SOT2163-1_Master
click to zoom

TJA1466BHG/0J Details

  • Manufacturer Part Number:

    TJA1466BHG/0J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    14

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1466BHG/0J Overview

Use the download button to access the TJA1466BHG/0J schematic symbol, PCB footprint, and 3D model.
