TJA1466CHG/0J - NXP

Description: Plastic thermal enhanced very thin small outline package; no leads; 18 terminals; body 3mm × 4.5mm × 0.85mm , 400µA , 60mA ,-36V ~ +40V , -40°C ~ +150°C

Download TJA1466CHG/0J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

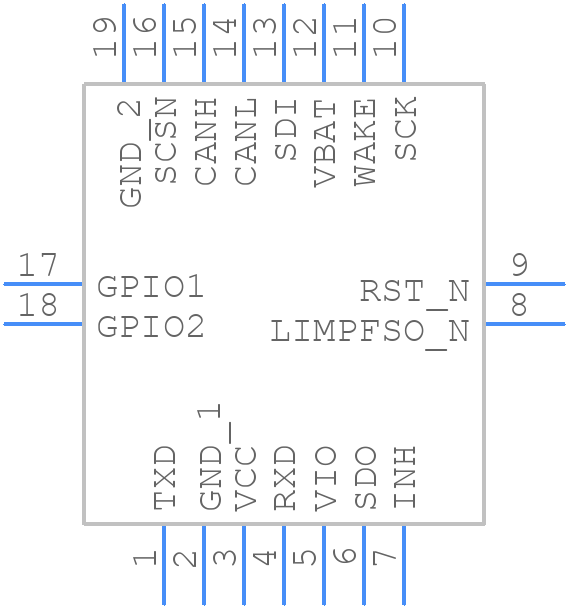

TJA1466CHG/0J - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1466CHG/0J - NXP PCB footprint - Other - Other - SOT2163-1_Master
click to zoom
3D Models
TJA1466CHG/0J - NXP - 3D model - Other - SOT2163-1_Master
click to zoom

TJA1466CHG/0J Details

  • Manufacturer Part Number:

    TJA1466CHG/0J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    14

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1466CHG/0J Overview

Use the download button to access the TJA1466CHG/0J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA14, or try a keyword search, such as Network Interfaces
