TJF1052IT/2Y - NXP

Description: CAN Digital Isolator 2500Vrms 2 Channel 2Mbps 20kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)

Download TJF1052IT/2Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

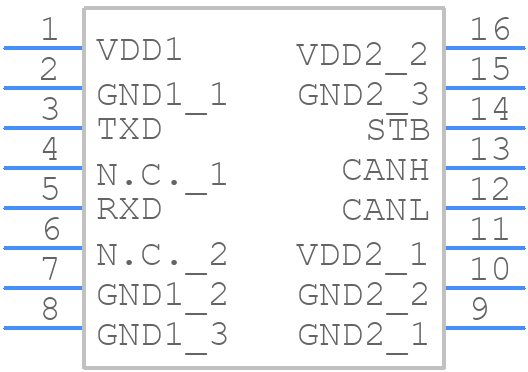

TJF1052IT/2Y - NXP - PCB symbol
click to zoom
PCB Footprints
TJF1052IT/2Y - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT162-1
click to zoom
3D Models
TJF1052IT/2Y - NXP - 3D model - Small Outline Packages - SOT162-1
click to zoom

TJF1052IT/2Y Details

  • Manufacturer Part Number:

    TJF1052IT/2Y

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT162-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7.15

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TJF1052IT/2Y Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a shielded enclosure, keep the PCB away from metal objects, and ensure proper grounding. Also, use a common mode choke or ferrite bead to filter out high-frequency noise.
  • The TJF1052IT/2Y can operate from -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The TJF1052IT/2Y has an internal POR and BOR. Ensure that the power supply is stable and within the recommended voltage range. Use an external reset circuit or a supervisory IC to monitor the power supply and generate a reset signal if necessary.
  • Use 100nF to 1uF ceramic capacitors for decoupling, placed as close as possible to the TJF1052IT/2Y's power pins. Use a 10uF to 22uF electrolytic capacitor for bulk decoupling.
