TJF1052IT/5Y - NXP

Description: CAN Interface IC Galvanically isolated high-speed CAN transceiver

Download TJF1052IT/5Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

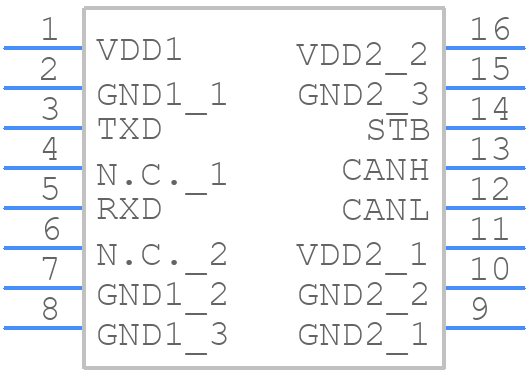

TJF1052IT/5Y - NXP - PCB symbol
click to zoom
PCB Footprints
TJF1052IT/5Y - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO16 (SOT162-1)
click to zoom
3D Models
TJF1052IT/5Y - NXP - 3D model - Small Outline Packages - SO16 (SOT162-1)
click to zoom

TJF1052IT/5Y Details

  • Manufacturer Part Number:

    TJF1052IT/5Y

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT162-1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TJF1052IT/5Y Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Monitor the device's junction temperature, ensure the supply voltage is within the recommended range, and provide adequate heat sinking to prevent overheating.
  • Critical timing parameters include clock frequency, setup and hold times, and propagation delay. Ensure these parameters are met by following the recommended clocking scheme, using a stable clock source, and verifying signal integrity.
  • Use a shielded enclosure, ensure proper grounding, and follow good PCB layout practices to minimize EMI. Implement EMI filters and shielding on I/O lines, and ensure the device is operated within its recommended frequency range.
  • Use a logic analyzer or oscilloscope to verify signal integrity and timing. Perform functional testing, such as input/output verification, and use a thermal camera to monitor junction temperature.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJF1052IT/5Y Overview

Use the download button to access the TJF1052IT/5Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJF10, or try a keyword search, such as Network Interfaces
