TJR1442ATK/0Z - NXP

Description: High-speed CAN transceiver with Standby mode

Download TJR1442ATK/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

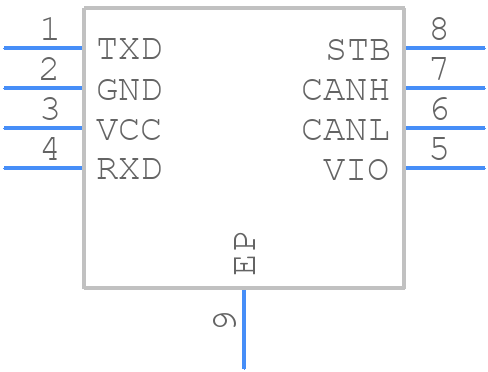

TJR1442ATK/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJR1442ATK/0Z - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - Package outline SOT782-1 (HVSON8)
click to zoom
3D Models
TJR1442ATK/0Z - NXP - 3D model - Small Outline No-lead - Package outline SOT782-1 (HVSON8)
click to zoom

TJR1442ATK/0Z Details

  • Manufacturer Part Number:

    TJR1442ATK/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON-8

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    60 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

TJR1442ATK/0Z Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11524, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TJR1442ATK/0Z datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, NXP's application note AN11524 provides guidance on component selection and calculation for specific applications.
  • The TJR1442ATK/0Z has an operating temperature range of -40°C to +125°C, but it's essential to consider the derating curves and thermal management guidelines in the datasheet to ensure reliable operation within the specified temperature range.
  • NXP recommends using an external overvoltage protection (OVP) circuit, such as a voltage supervisor or a dedicated OVP IC, to protect the TJR1442ATK/0Z from voltage transients and surges. The application note AN11524 provides guidance on OVP circuit design and implementation.
  • NXP recommends following the JEDEC J-STD-020D.1 standard for soldering the TJR1442ATK/0Z. This standard provides guidelines for temperature profiling, soldering time, and moisture sensitivity to ensure reliable assembly and minimize the risk of damage during the soldering process.
