TK14V65W - Toshiba

TK14V65W Details

• Manufacturer Part Number:

  TK14V65W

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

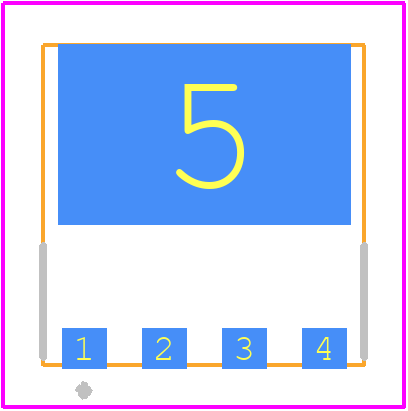

• Package Description:

  DFN-4

• ECCN Code:

  EAR99

• Factory Lead Time:

  20 Weeks

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6.7

• Avalanche Energy Rating (Eas):

  179 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  650 V

• Drain Current-Max (ID):

  13.7 A

• Drain-source On Resistance-Max:

  0.28 Ω

• FET Technology:

  SUPERJUNCTION MOSFET

• Feedback Cap-Max (Crss):

  4 pF

• JESD-30 Code:

  S-PSSO-N4

• Number of Elements:

  1

• Number of Terminals:

  4

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  139 W

• Pulsed Drain Current-Max (IDM):

  54.8 A

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Position:

  SINGLE

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
