TK17A65W,S5X - Toshiba

Description: Pb-F POWER MOSFET TRANSISTOR TO-220SIS MOQ=50 PD=45W F=1MHZ

Download TK17A65W,S5X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

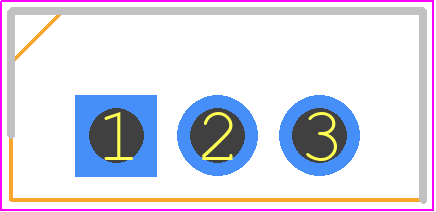

TK17A65W,S5X - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220SIS-ren1
click to zoom
3D Models
TK17A65W,S5X - Toshiba  - 3D model - Transistor Outline, Vertical - TO-220SIS-ren1
click to zoom

TK17A65W,S5X Details

  • Manufacturer Part Number:

    TK17A65W,S5X

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-67, TO-220SIS, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    314 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    17.3 A

  • Drain-source On Resistance-Max:

    0.2 Ω

  • FET Technology:

    SUPERJUNCTION MOSFET

  • Feedback Cap-Max (Crss):

    7 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    45 W

  • Pulsed Drain Current-Max (IDM):

    69.2 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TK17A65W,S5X Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Implement a heat sink or thermal management system, and ensure the device is operated within the recommended temperature range (TJ = -20 to 150°C).
  • The maximum allowed voltage for the gate-source (VGS) is ±20V, and for the gate-drain (VGD) is ±15V.
  • Yes, the TK17A65W,S5X is suitable for high-frequency switching applications up to 100 kHz, but ensure proper PCB layout and decoupling to minimize ringing and EMI.
  • The internal diode's reverse recovery characteristics can be managed by using a snubber circuit or a fast-recovery diode in parallel with the MOSFET.
