TK17A65W5,S5X - Toshiba

Description: Pb-F POWER MOSFET TRANSISTOR TO-220SIS MOQ=50 PD=45W F=1MHZ

Download TK17A65W5,S5X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

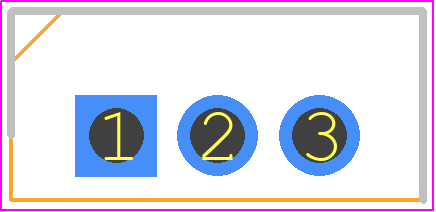

TK17A65W5,S5X - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220SIS-
click to zoom
3D Models
TK17A65W5,S5X - Toshiba  - 3D model - Transistor Outline, Vertical - TO-220SIS-
click to zoom

TK17A65W5,S5X Details

  • Manufacturer Part Number:

    TK17A65W5,S5X

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-67, TO-220SIS, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    314 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    17.3 A

  • Drain-source On Resistance-Max:

    0.23 Ω

  • FET Technology:

    SUPERJUNCTION MOSFET

  • Feedback Cap-Max (Crss):

    5.5 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    45 W

  • Pulsed Drain Current-Max (IDM):

    69.2 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TK17A65W5,S5X Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. Ensure good airflow and avoid thermal hotspots around the device.
  • The TK17A65W5,S5X has built-in ESD protection, but it's still essential to follow standard ESD handling precautions during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the device's pins or exposed internal components.
  • While the TK17A65W5,S5X is a high-performance device, it's essential to consult with Toshiba's application engineers to determine its suitability for high-reliability or automotive applications. They can provide guidance on the device's qualification status, reliability data, and any necessary testing or validation procedures.
  • Toshiba recommends following the standard soldering conditions and profiles for lead-free soldering, such as those specified in the IPC-J-STD-020D standard. The recommended peak temperature is 260°C, with a maximum dwell time of 30 seconds. Ensure that the soldering process is optimized to prevent thermal damage or degradation.
