TK17A80W - Toshiba

TK17A80W Details

• Manufacturer Part Number:

  TK17A80W

• Part Life Cycle Code:

  Active

• Package Description:

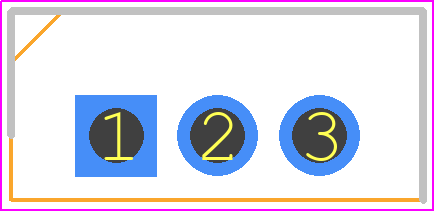

  SC-67, TO-220SIS, 3 PIN

• ECCN Code:

  EAR99

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6

• Avalanche Energy Rating (Eas):

  475 mJ

• Case Connection:

  ISOLATED

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  800 V

• Drain Current-Max (ID):

  17 A

• Drain-source On Resistance-Max:

  0.29 Ω

• FET Technology:

  SUPERJUNCTION MOSFET

• Feedback Cap-Max (Crss):

  2 pF

• JEDEC-95 Code:

  TO-220AB

• JESD-30 Code:

  R-PSFM-T3

• Number of Elements:

  1

• Number of Terminals:

  3

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  45 W

• Pulsed Drain Current-Max (IDM):

  68 A

• Surface Mount:

  NO

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
