TK25A20D,S5X - Toshiba

Description: MOSFET PWR MOSFET PD=45W F=1MHZ

Download TK25A20D,S5X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

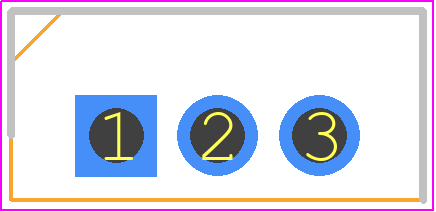

TK25A20D,S5X - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220SIS-ren1
click to zoom
3D Models
TK25A20D,S5X - Toshiba  - 3D model - Transistor Outline, Vertical - TO-220SIS-ren1
click to zoom

TK25A20D,S5X Details

  • Manufacturer Part Number:

    TK25A20D,S5X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SC-67, TO-220SIS, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Avalanche Energy Rating (Eas):

    118 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    200 V

  • Drain Current-Max (ID):

    25 A

  • Drain-source On Resistance-Max:

    0.07 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    21 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    45 W

  • Pulsed Drain Current-Max (IDM):

    100 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TK25A20D,S5X Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
  • Ensure proper heat sinking, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and follow the recommended operating conditions and derating guidelines.
  • The maximum allowed voltage transient on the input pins is ±20% of the recommended operating voltage, with a maximum duration of 100ms.
  • Yes, the TK25A20D,S5X is qualified to AEC-Q100 and is suitable for high-reliability and automotive applications. However, additional testing and validation may be required.
  • Follow standard ESD handling procedures, use ESD-protective packaging and materials, and ensure that all personnel handling the device are grounded.
