TK2R4A08QM - Toshiba

TK2R4A08QM Details

• Manufacturer Part Number:

  TK2R4A08QM

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

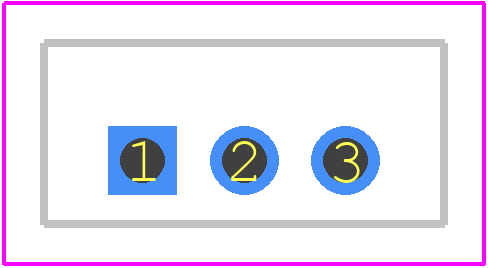

• Package Description:

  TO-220SIS, 3 PIN

• ECCN Code:

  EAR99

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  5

• Avalanche Energy Rating (Eas):

  143 mJ

• Case Connection:

  ISOLATED

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  80 V

• Drain Current-Max (ID):

  100 A

• Drain-source On Resistance-Max:

  0.0031 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  135 pF

• JEDEC-95 Code:

  TO-220AB

• JESD-30 Code:

  R-PSFM-T3

• Number of Elements:

  1

• Number of Terminals:

  3

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  47 W

• Pulsed Drain Current-Max (IDM):

  500 A

• Surface Mount:

  NO

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
