A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer of the PCB, connected to the thermal pad of the TK33S10N1L,LQ. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it is recommended to follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, ensuring good thermal design and heat dissipation can help prevent overheating.
When handling the TK33S10N1L,LQ, it is recommended to take precautions to prevent electrostatic discharge (ESD) damage. This includes using an ESD wrist strap or mat, and handling the device by the body rather than the leads.
Yes, the TK33S10N1L,LQ is suitable for high-reliability applications. However, it is recommended to follow the recommended operating conditions and to perform thorough testing and validation to ensure the device meets the required reliability standards.
To troubleshoot issues with the TK33S10N1L,LQ, it is recommended to follow a systematic approach, checking the power supply, input signals, and output signals. Additionally, consulting the datasheet and application notes can provide valuable guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TK33S10N1L,LQ Overview

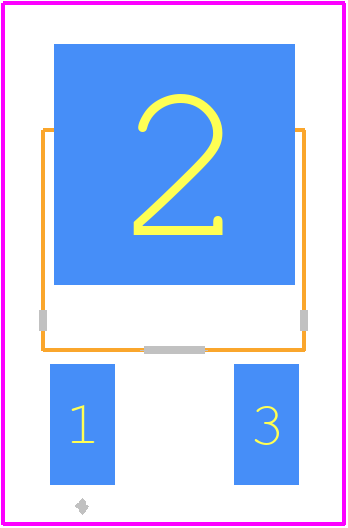

Use the download button to access the TK33S10N1L,LQ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TK33S,
or try a keyword search, such as Power Field-Effect Transistors
