TK40S06N1L,LQ - Toshiba

Description: Pb-F POWER MOSFET TRANSISTOR DPAK-OS PD=88.2W F=1MHZ

Download TK40S06N1L,LQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

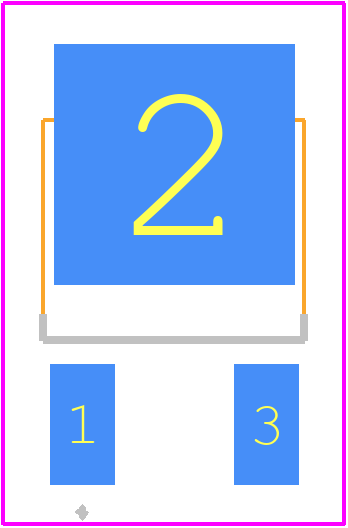

TK40S06N1L,LQ - Toshiba PCB footprint - Other - Other - TK40S06N1L,LQ-1
click to zoom

TK40S06N1L,LQ Details

  • Manufacturer Part Number:

    TK40S06N1L,LQ

  • Part Life Cycle Code:

    Active

  • Package Description:

    DPAK-3/2

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    23.4 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    40 A

  • Drain-source On Resistance-Max:

    0.018 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    107 pF

  • JESD-30 Code:

    R-PSSO-G2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    88.2 W

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TK40S06N1L,LQ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TK40S06N1L,LQ is -40°C to 150°C.
  • Yes, the TK40S06N1L,LQ is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The recommended storage temperature range for the TK40S06N1L,LQ is -40°C to 30°C.
  • Yes, the TK40S06N1L,LQ is suitable for high-reliability applications, such as automotive, industrial, and medical devices, due to its high-quality manufacturing process and rigorous testing.
  • The typical turn-on time for the TK40S06N1L,LQ is around 10-20 ns, depending on the specific application and operating conditions.
