TK4A80E,S4X - Toshiba

Description: Pb-F POWER MOSFET TRANSISTOR TO-220SIS PD=35W F=1MHZ

Download TK4A80E,S4X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TK4A80E,S4X - Toshiba - PCB symbol
click to zoom
PCB Footprints

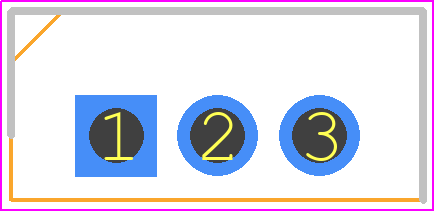

TK4A80E,S4X - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - 2-10U1S_1
click to zoom
3D Models
TK4A80E,S4X - Toshiba - 3D model - Transistor Outline, Vertical - 2-10U1S_1
click to zoom

TK4A80E,S4X Details

  • Manufacturer Part Number:

    TK4A80E,S4X

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    TO-220SIS, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Avalanche Energy Rating (Eas):

    152 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    800 V

  • Drain Current-Max (ID):

    4 A

  • Drain-source On Resistance-Max:

    3.5 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    6 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    35 W

  • Pulsed Drain Current-Max (IDM):

    12 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
