TK6A80E,S4X - Toshiba

TK6A80E,S4X Details

• Manufacturer Part Number:

  TK6A80E,S4X

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

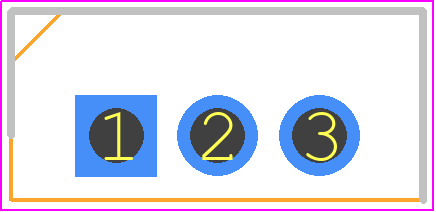

• Package Description:

  SC-67, TO-220SIS, 3 PIN

• ECCN Code:

  EAR99

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  3

• Avalanche Energy Rating (Eas):

  308 mJ

• Case Connection:

  ISOLATED

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  800 V

• Drain Current-Max (ID):

  6 A

• Drain-source On Resistance-Max:

  1.7 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  10 pF

• JEDEC-95 Code:

  TO-220AB

• JESD-30 Code:

  R-PSFM-T3

• Number of Elements:

  1

• Number of Terminals:

  3

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  45 W

• Pulsed Drain Current-Max (IDM):

  18 A

• Surface Mount:

  NO

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
