TK8A25DA,S4X - Toshiba

Description: Pb-F POWER MOSFET TRANSISTOR TO-220SIS PD=30W F=1MHZ

Download TK8A25DA,S4X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

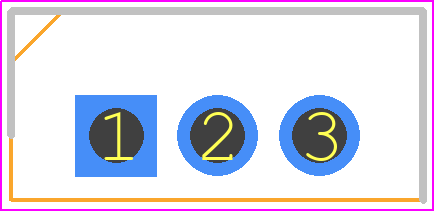

TK8A25DA,S4X - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220SIS-ren1
click to zoom
3D Models
TK8A25DA,S4X - Toshiba  - 3D model - Transistor Outline, Vertical - TO-220SIS-ren1
click to zoom

TK8A25DA,S4X Details

  • Manufacturer Part Number:

    TK8A25DA,S4X

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SC-67, TO-220SIS, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Avalanche Energy Rating (Eas):

    45 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    250 V

  • Drain Current-Max (ID):

    7.5 A

  • Drain-source On Resistance-Max:

    0.5 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    5.1 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    30 W

  • Pulsed Drain Current-Max (IDM):

    30 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TK8A25DA,S4X Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Implement a heat sink or a thermal management system, and ensure the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C.
  • The maximum allowed voltage on the input pins is 5.5V, exceeding which may cause damage to the device.
  • Yes, the TK8A25DA,S4X is suitable for high-frequency switching applications up to 100 kHz, but ensure proper PCB layout and decoupling to minimize EMI and noise.
  • Implement ESD protection measures such as TVS diodes or ESD protection arrays on the input lines, and follow proper handling and storage procedures to prevent ESD damage.
