A good PCB layout for optimal thermal performance would involve placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The PCB should also be designed to minimize thermal resistance.
To ensure proper biasing, follow the recommended voltage and current ratings specified in the datasheet. Additionally, ensure that the input and output capacitors are properly selected and placed to minimize noise and oscillations.
Monitor the device's junction temperature (Tj), output current (Iout), and input voltage (Vin) to prevent overheating. Ensure that the device is operated within the recommended specifications to prevent thermal runaway.
To troubleshoot issues, start by verifying that the device is properly biased and that the input and output capacitors are properly selected and placed. Check for signs of overheating, such as excessive temperature or current draw. Use an oscilloscope to monitor the device's output and input signals to identify any oscillations or noise.
Store the devices in their original packaging or in a dry, cool place away from direct sunlight. Handle the devices by the body, avoiding touching the pins or leads to prevent electrostatic discharge (ESD) damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TK90S06N1L,LQ Overview

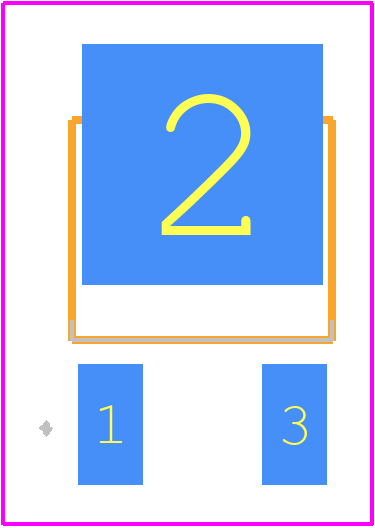

Use the download button to access the TK90S06N1L,LQ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TK90S,
or try a keyword search, such as Power Field-Effect Transistors
