TL084CDRG4 - Texas Instruments

Description: Quad High Slew Rate JFET-Input Operational Amplifier

Download TL084CDRG4 Model

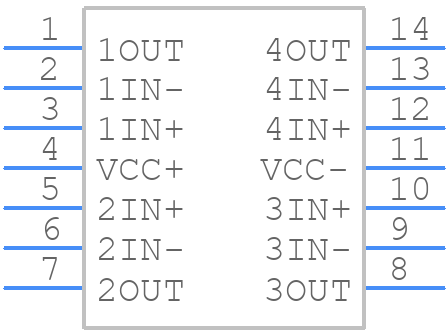

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TL084CDRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G14)
click to zoom
3D Models
TL084CDRG4 - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G14)
click to zoom

TL084CDRG4 Details

  • Manufacturer Part Number:

    TL084CDRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia, Mexico, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.01 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    86 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.002 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    8 V/us

  • Slew Rate-Nom:

    13 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    11.2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    251000

  • Wideband:

    NO

  • Width:

    3.9 mm

TL084CDRG4 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the TL084CDRG4 is 670mW at 25°C free-air temperature, and it can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance.
  • To ensure stability in a unity-gain buffer configuration, it's recommended to add a capacitor (typically 10-100pF) between the output and the inverting input to prevent oscillations. Additionally, ensure that the layout is well-designed to minimize parasitic capacitance and inductance.
  • To minimize noise and EMI, it's recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a ground plane, and minimizing loop areas. Additionally, place the TL084CDRG4 close to the signal source, and use decoupling capacitors (typically 0.1uF) between the power supply pins and ground.
  • The TL084CDRG4 is rated for operation up to 125°C, but its performance may degrade at high temperatures. If you need to operate the device at high temperatures, ensure that you follow the recommended derating guidelines and consider using a heat sink to maintain a safe junction temperature.
  • The choice of resistor values depends on the desired gain, bandwidth, and input impedance. A good starting point is to use the recommended values from the datasheet or application notes, and then adjust them based on your specific requirements. Ensure that the resistors are of high quality and have low tolerance to minimize errors.
