The maximum power dissipation of the TL084CPWR is 1.4W, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 67.5°C/W.
While the TL084CPWR can operate up to 125°C, it's not recommended to use it in high-temperature environments above 85°C without proper heat sinking and thermal management, as it may affect the device's reliability and lifespan.
To ensure stability, make sure to follow proper PCB layout practices, use a stable power supply, and add decoupling capacitors (e.g., 0.1 μF) close to the op-amp's power pins. Additionally, consider adding a compensation capacitor (e.g., 10 pF) between the output and the inverting input for high-frequency stability.
The recommended input impedance for the TL084CPWR is between 1 kΩ and 100 kΩ. Impedances outside this range may affect the op-amp's performance, such as bandwidth and distortion.
While the TL084CPWR can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (0.5 V/μs) and limited bandwidth (3 MHz). Consider using a dedicated comparator IC, such as the LM339, for comparator applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL084CPWR Overview

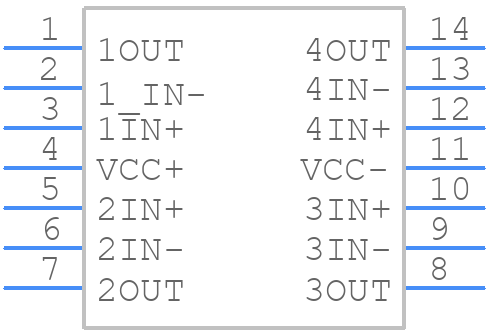

Use the download button to access the TL084CPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL084,
