TL1220R3BBRWSTART - E-Switch

TL1220R3BBRWSTART Details

• Manufacturer Part Number:

  TL1220R3BBRWSTART

• Part Life Cycle Code:

  Contact Manufacturer

• Reach Compliance Code:

  Compliant

• Manufacturer:

  E-Switch Inc

• Actuator Color:

  RED

• Actuator Travel:

  0.2032 mm

• Actuator Type:

  PUSHBUTTON

• Additional Feature:

  WHITE COLOR LED

• Body Breadth:

  5.9944 mm

• Body Height:

  5.5118 mm

• Contact Current(DC)-Max:

  0.05 A

• Contact (DC) Max Rating R Load:

  0.05A@12VDC

• Contact Resistance:

  0.1 mΩ

• Contact Voltage(DC)-Max:

  12 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  500000 Cycle(s)

• Illumination:

  LED

• Insulation Resistance:

  100000000 Ω

• Manufacturer Series:

  TL1220

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

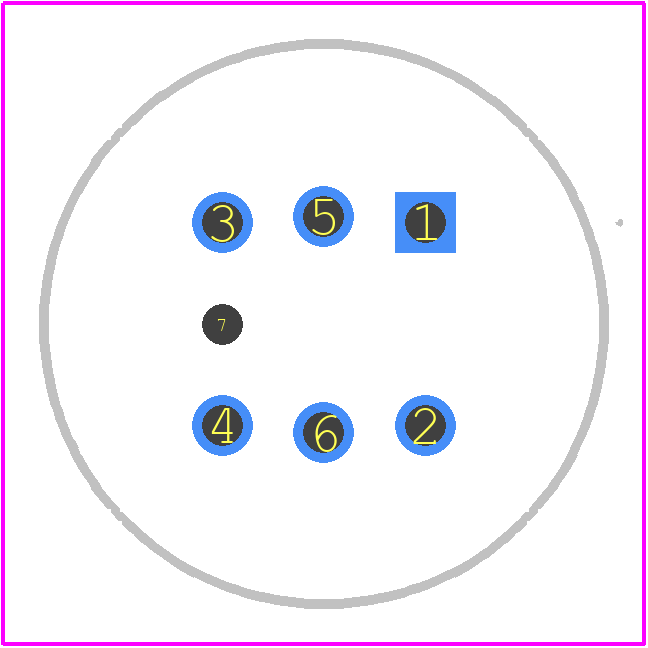

• PCB Hole Count:

  7

• Surface Mount:

  NO

• Switch Function:

  SPST

• Terminal Length:

  0.138 inch

• Termination Type:

  SOLDER
