Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke and a ferrite bead to filter out high-frequency noise.
To ensure stability, make sure to follow the recommended component values and PCB layout. Additionally, it's recommended to add a 10nF to 100nF capacitor between the output and ground to improve stability. Also, ensure that the input voltage is within the recommended range and that the output is not overloaded.
The TL1451ACPW can handle a maximum output current of 1A. However, it's recommended to derate the output current based on the ambient temperature and the desired reliability. For example, at 25°C, the recommended maximum output current is 700mA.
The TL1451ACPW is rated for operation up to 125°C. However, it's recommended to derate the output current and voltage based on the ambient temperature to ensure reliability. Additionally, it's recommended to use a heat sink to dissipate heat and reduce the junction temperature.
To troubleshoot issues with the TL1451ACPW, start by checking the input voltage and current, and ensure that they are within the recommended range. Next, check the output voltage and current, and ensure that they are within the expected range. Use an oscilloscope to check for noise and oscillations on the output. Finally, check the PCB layout and component values to ensure that they are correct and follow the recommended layout.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TL1451ACPW Overview

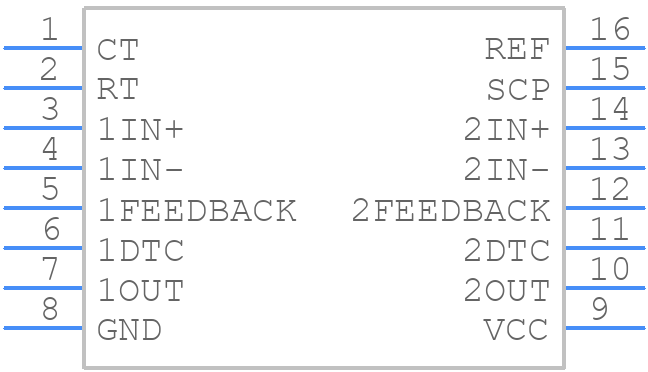

Use the download button to access the TL1451ACPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL145,
or try a keyword search, such as Switching Regulator or Controllers
