Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke and a ferrite bead to filter out high-frequency noise.
To ensure stability, make sure to follow the recommended compensation network values and layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the output pin. Additionally, avoid using long output traces and keep the feedback network as short as possible.
Although the datasheet specifies a maximum input voltage of 42V, it's recommended to limit the input voltage to 40V to ensure reliable operation and to prevent damage to the device.
Yes, the TL1451AQDR is rated for operation up to 125°C. However, it's essential to ensure that the device is properly derated for temperature, and that the PCB and surrounding components can also withstand the high temperature.
Use an oscilloscope to monitor the output voltage and current. Check for signs of oscillation, such as ringing or high-frequency noise. Verify that the input voltage is within the recommended range, and that the compensation network is properly configured. Also, check for any layout or PCB issues that may be contributing to the problem.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL1451AQDR Overview

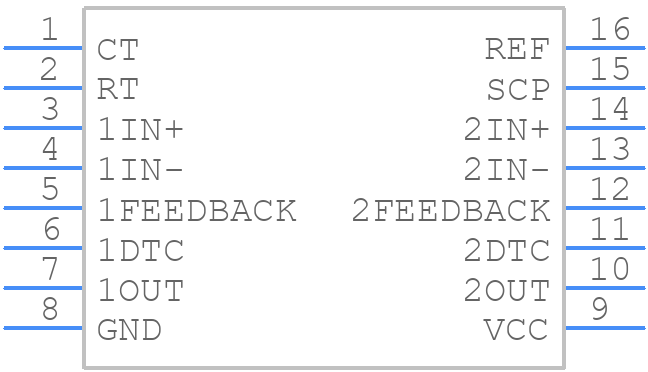

Use the download button to access the TL1451AQDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL145,
or try a keyword search, such as Switching Regulator or Controllers
