A good PCB layout for the TL1963A-18DCQR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be chosen to ensure a stable input impedance. It's also crucial to consider the power supply rejection ratio (PSRR) and the output voltage noise when designing the circuit.
The TL1963A-18DCQR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal management and heat dissipation in the system design to ensure reliable operation.
Yes, the TL1963A-18DCQR is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process, and it's qualified according to the AEC-Q100 standard for automotive applications. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the specific application requirements.
To troubleshoot issues with the TL1963A-18DCQR, start by verifying the power supply voltage, input voltage, and output voltage. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to measure the output voltage and check for any oscillations or noise. If the issue persists, consult the datasheet and application notes for guidance, or contact Texas Instruments' support team for assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL1963A-18DCQR Overview

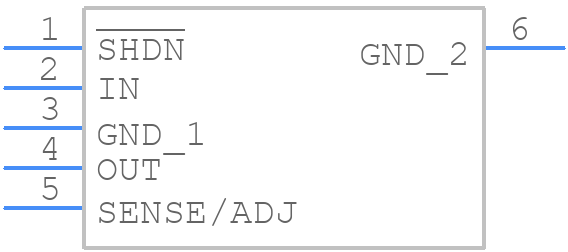

Use the download button to access the TL1963A-18DCQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL196,
or try a keyword search, such as Linear Regulator ICs
