Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general guidelines for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
To ensure the TL1963A-18DCQT operates within its SOA, calculate the maximum current and voltage stress on the device based on the application's requirements, and ensure that the device is not operated beyond its maximum ratings. Additionally, follow proper thermal management and PCB design practices to minimize thermal stress.
Input voltage ripple can affect the TL1963A-18DCQT's output voltage regulation, especially at high frequencies. To minimize the impact, use a high-quality input capacitor with low ESR, and consider adding a filter or a pre-regulator to reduce the input voltage ripple.
The TL1963A-18DCQT is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure that the device is properly derated and that the application's thermal management is adequate to prevent overheating.
To troubleshoot issues with the TL1963A-18DCQT, follow a systematic approach: check the input voltage and current, verify the output voltage and current, and inspect the PCB layout and component values. Use oscilloscopes and thermal imaging tools to identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL1963A-18DCQT Overview

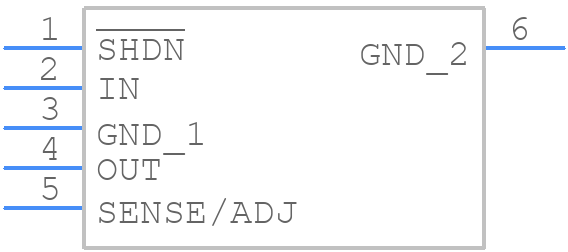

Use the download button to access the TL1963A-18DCQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL196,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
