A good PCB layout for the TL1963A-33DCQT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and inductance. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor is properly sized and placed. Additionally, ensure the input voltage is within the recommended range, and the device is not overheating. TI provides stability analysis and design tools to help with this.
The TL1963A-33DCQT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. Consult the datasheet and thermal design guidelines for more information.
Yes, the TL1963A-33DCQT is qualified for automotive and high-reliability applications, and meets the relevant industry standards such as AEC-Q100. However, additional testing and validation may be required for specific applications.
To troubleshoot issues, start by verifying the input voltage, output voltage, and component values. Check for signs of overheating, and ensure the PCB layout and component placement are correct. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. TI provides application notes and technical support to help with troubleshooting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL1963A-33DCQT Overview

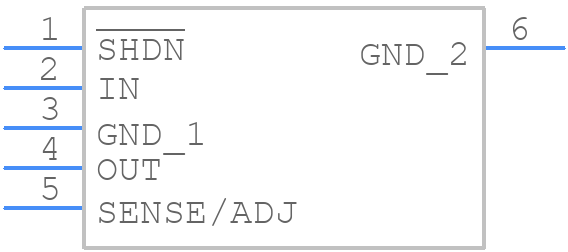

Use the download button to access the TL1963A-33DCQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL196,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
