For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer. This helps to dissipate heat efficiently. Additionally, ensure that the device is placed near a thermal pad or a heat sink to further improve heat dissipation.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Ensure that the input voltage is within the recommended range of 2.7V to 5.5V, and the output voltage is set within the recommended range of 1.5V to 3.3V. Also, ensure that the output current does not exceed the recommended maximum current of 1.5A.
When handling the device, take precautions to prevent electrostatic discharge (ESD) damage. Use an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or tube. Also, avoid touching the device pins or leads to prevent damage.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input voltage is within the recommended range. Check for any signs of overheating, and ensure that the device is properly cooled. If the issue persists, consult the datasheet or contact Texas Instruments support for further assistance.
The TL1963A-33KTTR is a low-dropout linear regulator suitable for a wide range of applications, including battery-powered devices, industrial control systems, and consumer electronics. It is particularly useful in applications requiring a low quiescent current and high power-supply rejection ratio (PSRR).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL1963A-33KTTR Overview

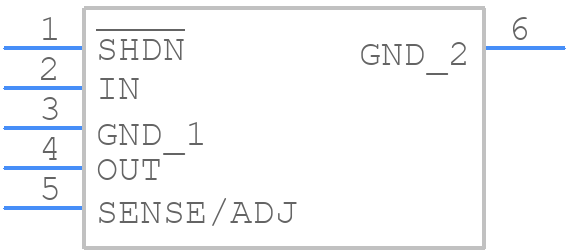

Use the download button to access the TL1963A-33KTTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL196,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
