TL2575-12IKTTR - Texas Instruments

Description: Texas Instruments, TL2575-12IKTTR Switching Regulator 1A Adjustable, 11.4 → 12.6 V, 5-Pin TO-263

Download TL2575-12IKTTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

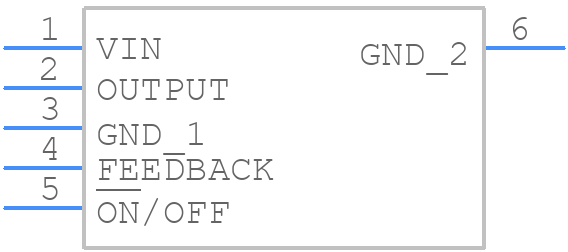

TL2575-12IKTTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

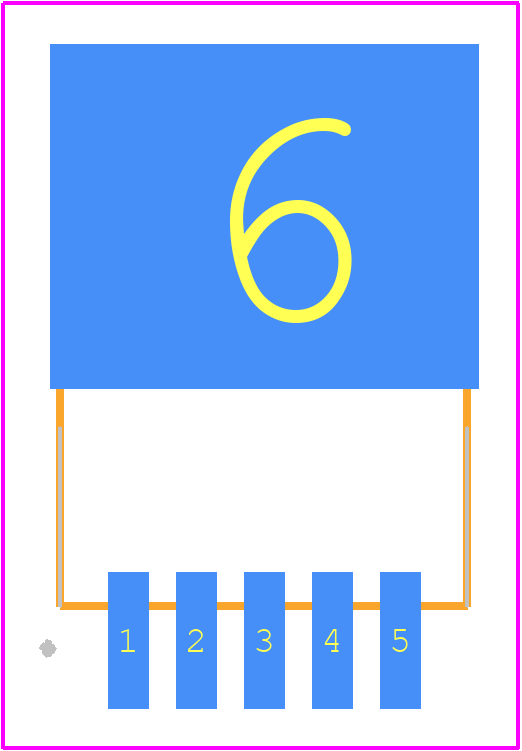

TL2575-12IKTTR - Texas Instruments PCB footprint - Other - Other - TL2575-12IKTTR-1
click to zoom
3D Models
TL2575-12IKTTR - Texas Instruments - 3D model - Other - TL2575-12IKTTR-1
click to zoom

TL2575-12IKTTR Details

  • Manufacturer Part Number:

    TL2575-12IKTTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    25 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    12 V

  • Output Voltage-Min:

    12 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Equivalence Code:

    SMSIP5H,.6,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.13 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    58 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8.925 mm

TL2575-12IKTTR Frequently Asked Questions (FAQs)

  • The TL2575-12IKTTR can handle input voltages up to 40V, but it's recommended to keep the input voltage below 30V for optimal performance and reliability.
  • To ensure a stable and regulated output voltage, make sure to use a suitable output capacitor (e.g., 10uF to 22uF) and a minimum load of 1mA. Also, ensure the input voltage is within the recommended range and the device is operated within its specified temperature range.
  • The TL2575-12IKTTR can provide up to 1A of output current, but it's recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
  • To protect the TL2575-12IKTTR from overheating, ensure good airflow around the device, use a suitable heat sink if necessary, and avoid operating the device at high ambient temperatures (above 70°C) or high input voltages (above 25V) for extended periods.
  • Yes, the TL2575-12IKTTR is suitable for high-reliability and automotive applications due to its high temperature rating, low dropout voltage, and high output current capability. However, ensure that the device is operated within its specified parameters and follow proper design and testing procedures to ensure reliability.
