The recommended layout and placement for the TL2844BD involves keeping the input and output pins as close as possible to the device, using a ground plane to reduce noise, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability and prevent oscillations in the TL2844BD, it is recommended to use a compensation capacitor (Cc) between the COMP and FB pins, and to choose the correct value of Cc based on the output voltage and load current. Additionally, the device should be operated within the recommended operating conditions and the input and output capacitors should be selected carefully.
The maximum allowed input voltage for the TL2844BD is 18V, but it is recommended to operate the device with an input voltage below 15V to ensure reliable operation and to prevent damage to the device.
The TL2844BD is rated for operation up to 125°C, but it is recommended to derate the device's power dissipation and output current at high temperatures to prevent overheating and ensure reliable operation.
To troubleshoot issues with the TL2844BD, it is recommended to check the input voltage, output voltage, and output current, and to verify that the device is operated within the recommended operating conditions. Additionally, checking the compensation capacitor value, input and output capacitor selection, and PCB layout can help identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL2844BD Overview

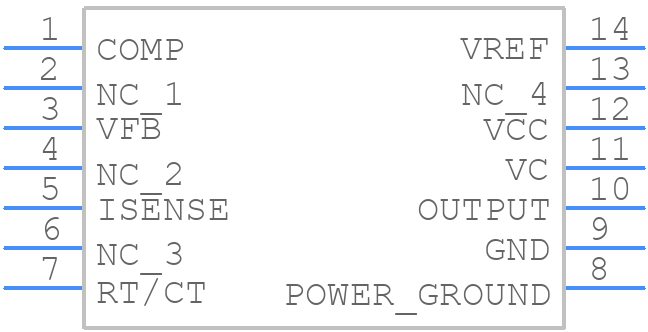

Use the download button to access the TL2844BD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL284,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
