It is recommended to place the TL3016ID close to the power source, use a solid ground plane, and keep the input and output traces separate to minimize EMI and noise. Additionally, use a decoupling capacitor between the input and ground to filter out high-frequency noise.
To ensure the TL3016ID operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the device is properly heatsinked, and the ambient temperature is within the recommended range. Also, avoid operating the device at maximum ratings for extended periods.
The recommended input capacitor value is 1-10uF, and the output capacitor value is 10-100uF. Choose capacitors with low ESR and high ripple current ratings. The capacitor values depend on the specific application, output current, and input voltage ripple requirements.
Use an oscilloscope to monitor the input and output voltages, and check for any signs of oscillation or ringing. Verify the input voltage, output current, and ambient temperature are within the recommended ranges. Check for any signs of overheating, and ensure proper heatsinking and airflow.
The TL3016ID is a commercial-grade device, but it can be used in high-reliability applications with proper design, testing, and validation. It meets various certifications, including RoHS, REACH, and IEC 62368-1. However, it is essential to consult with Texas Instruments and conduct thorough testing and validation for safety-critical applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL3016ID Overview

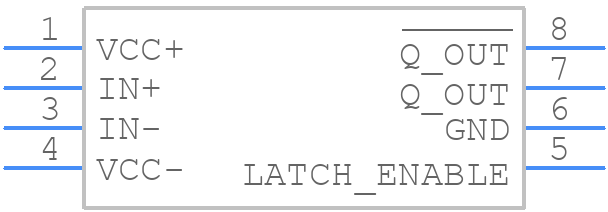

Use the download button to access the TL3016ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL301,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
