TL3016IDRG4 - Texas Instruments

Description: Analog Comparators Ultra-Fast Low-Power Precision Comparator

Download TL3016IDRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

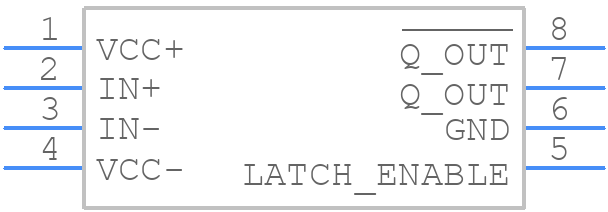

TL3016IDRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TL3016IDRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TL3016IDRG4 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TL3016IDRG4 Details

  • Manufacturer Part Number:

    TL3016IDRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    10 µA

  • Bias Current-Max (IIB) @25C:

    10 µA

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -7 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    7800 ns

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Comparator

  • Supply Current-Max:

    12.5 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TL3016IDRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to improve thermal performance. A minimum of 2 oz copper thickness is recommended for the thermal pad.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet. Additionally, ensure good thermal conduction between the device and the heat sink or PCB.
  • A low-ESR ceramic capacitor with a value of 1-10 μF is recommended for the input capacitor. The capacitor should be placed as close as possible to the input pin of the regulator to minimize noise and ripple.
  • Yes, the TL3016IDRG4 can be used in battery-powered devices. However, it is recommended to add a low-dropout linear regulator or a switching regulator to regulate the output voltage and minimize power consumption when the input voltage is close to the output voltage.
  • To protect the regulator from input voltage transients and surges, it is recommended to add a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input of the regulator. This will help to limit the input voltage to a safe level and prevent damage to the regulator.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TL3016IDRG4 Overview

Use the download button to access the TL3016IDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL301, or try a keyword search, such as Comparators
