The TL3474IN is a high-frequency device, and proper layout and placement are crucial for optimal performance. TI recommends placing the device close to the power supply, using short traces, and avoiding vias and layers changes. A good rule of thumb is to keep the input and output traces separate and as short as possible.
The TL3474IN has a thermal pad on the bottom of the package, which is connected to the die. To handle thermal dissipation, TI recommends using a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A thermal interface material (TIM) can also be used to improve heat transfer.
The recommended input capacitance for the TL3474IN is 10nF to 100nF, and the recommended output capacitance is 10nF to 100nF. However, the optimal capacitance values may vary depending on the specific application and operating conditions. TI recommends experimenting with different capacitance values to find the optimal values for the specific design.
To ensure stability and prevent oscillation, TI recommends following the recommended layout and placement guidelines, using the recommended input and output capacitance values, and ensuring that the device is properly decoupled from the power supply. Additionally, the device should be operated within the recommended operating conditions, and the output should be properly terminated.
The TL3474IN has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. TI recommends operating the device within the recommended temperature range for optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL3474IN Overview

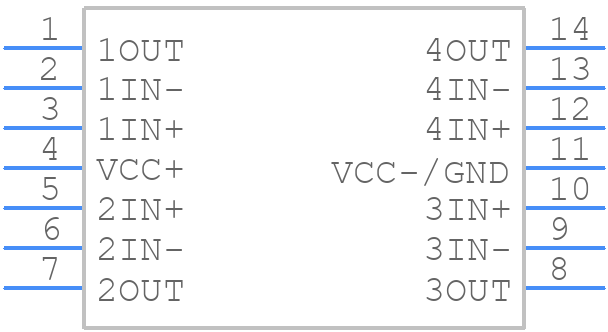

Use the download button to access the TL3474IN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL347,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
